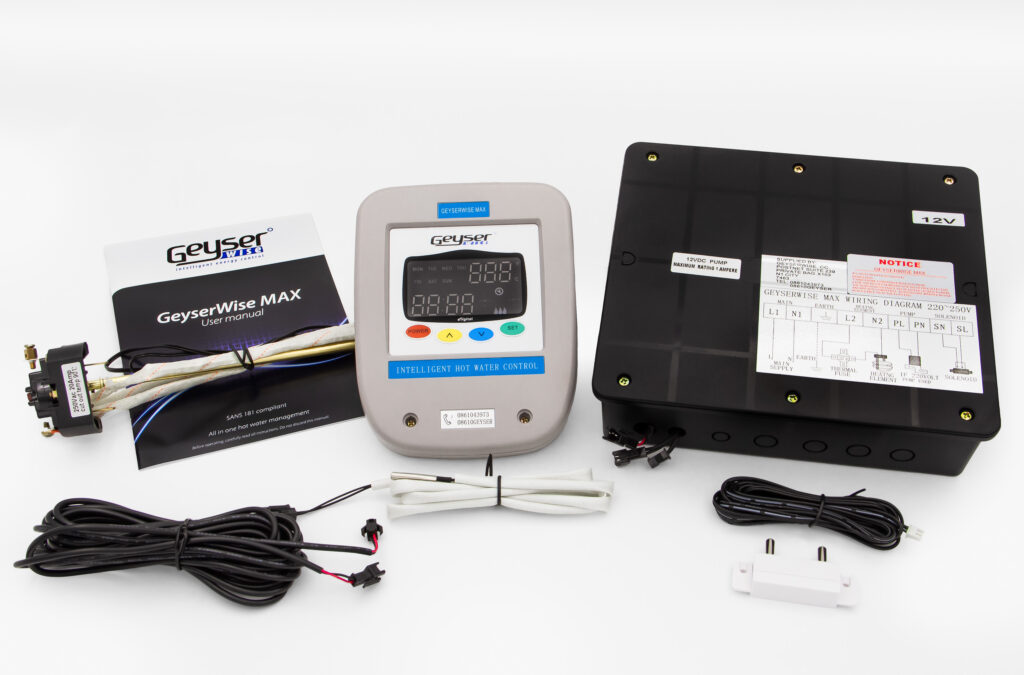

Geyserwise Max

For use in 12V and 220V pumped solar water heating systems

Description

Use as a geyser timer and use as timer on a thermosyphon solar system.

  • Clear display of water temperature, time, day, heating mode and malfunction conditions.
  • Auto or manual heating.
  • Easy temperature setting to your requirements (30 – 75°C) factory default is 55°C.
  • Four different temperature settings.
  • Daily programmable timer with four time settings.
  • Error conditions alert by warning code E1 to E7.
  • Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.

Use as timer and differential control on 12V and 220V pumped solar system.

  • Clear display of water temperature, time, day, heating mode and malfunction conditions on solar system and geyser.
  • Auto or manual heating.
  • Easy temperature setting to your requirements (30 – 75°C) factory default is 55°C.
  • Four different temperature settings.
  • Daily programmable timer with four time settings.
  • Error conditions alert by warning code E1 to E9.
  • Electronic thermostat with mechanical thermal cut-out at 90°C. Please note the cut-out temperature for systems expected to reach temperatures above this temperature.
  • Differential controller 12V and 220V systems.

Technical Parameters

  • Operating voltage 230VAC / 50HZ.
  • Main Relay contact rating 30AMP (Max 4KW).
  • Secondary relays pump and solenoid 5Amp.
  • Operating voltage range 220V – 250V AC.
  • Earth leakage protection at 25MA action time = 0,1 second.
  • Temperature display range 0 – 99°C (“-5” when below -5°C “EA” when above 99°C).
  • High temperature warning above 84°C.
  • Temperature setting ranges 30 – 75°C (heating water electrically).
  • Heat failure – when increase at a rate of less than 4°C per hour.
  • Electronic thermostat with mechanical thermal cut-out at 90°C.
  • Dry heat detection – empty cylinder.
  • Temperature tolerance ± 2%.
  • Temperature differential setting 1°C.
  • Switching differential 6°C.
  • 2nd temperature probe for solar.
  • Solar differential 7°C- 15°C – default is 7°C
  • Temperature probe failure detection for both collector and tank.
  • Temperature probe range for geyser is -30 to + 130°C.
  • Temperature probe range for collector is -30 to + 260°C.
  • Isolate both L + N when in off state.
  • Collector antifreeze protection at 0°C – 10°C – default is 5°C.
